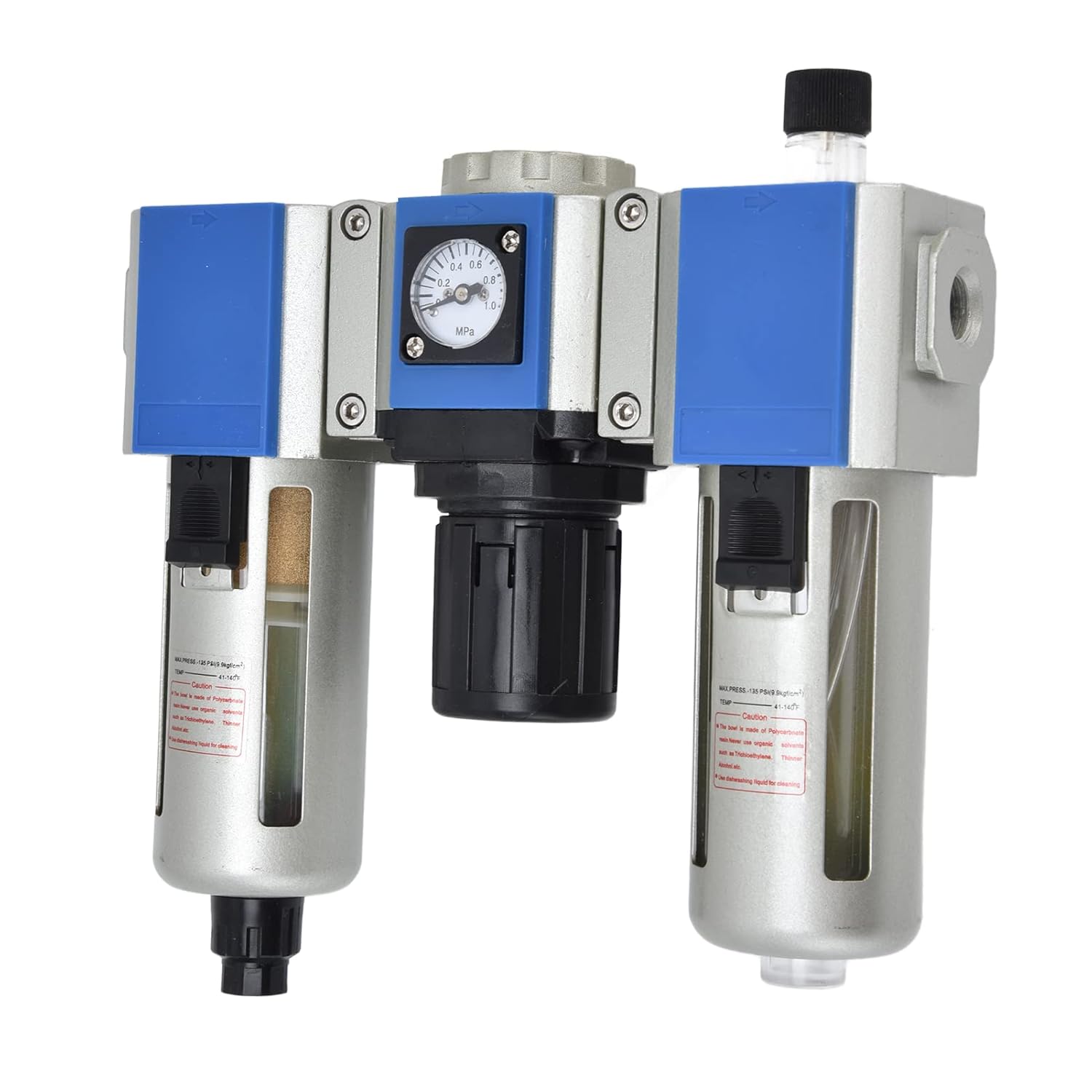

Filter Regulator Unit, Air Compressor Filter Pressure Regulator Lubricator Combination Water Oil Separator 3 Stage Air Compressor Accessories (GC300-08)

Specification: Item Type: Air Compressor Filter Material: Aluminium Alloy Model GC300-08 GC300-10 GC300-15 Working Medium Air Tube Calibre PT1/4 PT3/8 PT1/2 Filter Accuracy 40μm or 5μm Operating Pressure Range Automatic and Differential Pressure Drainage Type: 0.15-0.9Mpa (20-130Ps) Manual Drainage Type: 0.05-0.9Mpa (7-130Ps) Proof Pressure 1.5Mpa(215Psi) Operating Temperature Range -20℃-70℃ Filter Cup Capacity 40CC Oil Supply Cup Capacity 75CC Recommended Lubricating Oil ISO VG32 or Equivalent Oil Components Pressure Regulating Valve GR300-08 GR300-10 GR300-15 Atomized Lubricator GL300-08 GL300-10 GL300-15 Filter GF300-08 GF300-10 GF300-15 Package List: 1 x Air Compressor Filter Note: 1. Keep the pipeline clean to prolong the service life; 2. The bowl body is made of polycarbonate resin, do not use solvents, such as diluent, etc. Use dish soap for cleaning.

• Good Filtering: Has high efficiency in the removal of water and particles, the filter promises pressure regulation and ,not easy to be damaged or defective, this item can be used for a long time without worry,we have tested the comfort and durability of the product.
• Drainage Method: This air compressors flowing filter has three drainage methods to choose from: manual, differential pressure, and automatic drainage.
• Better Control: The oil supply can be calculated through scale ring position, and the lubricator also enables refuelling without interruption.
• Package List: 1 x Air Compressor Filter.
• Easy installation: The air compressor filter is connected firmly and quickly, and the convenient installation can be completed within a few minutes.
